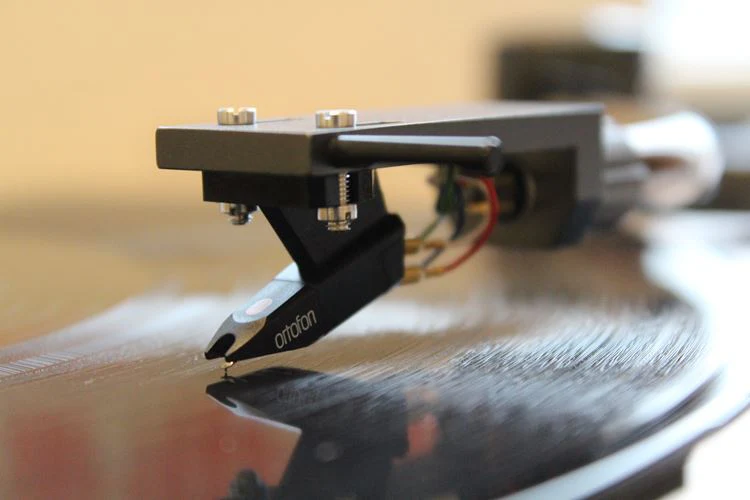

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

• Channel balance at 1 kHz 1.5 dB

• Output voltage at 1 kHz, 5cm/sec 4 mV

• Channel separation at 1 kHz 22 dB

• Frequency response 20 Hz - 20 kHz 20-22.000 Hz + 3 / -3

• Tracking ability at 315 Hz 60 µm

• Compliance, dynamic, lateral 20 µm/mN

• Stylus type Elliptical

• Stylus tip radius r/R 8/18 µm

• Tracking force range 1.5-2.0 g (15-20 mN)

• Tracking force, recommended 1.75 g (17.5 mN)

• Tracking angle 20°

• Internal impedance, DC resistance 1 kOhm

• Cartridge colour Black/Black

• Cartridge weight incl. extra weight 5 g, excl. extra weight 2.5 g

• Recommended load resistance 47 kOhm

• Internal inductance 580 mH

• Recommended load capacitance 200-500 pF
